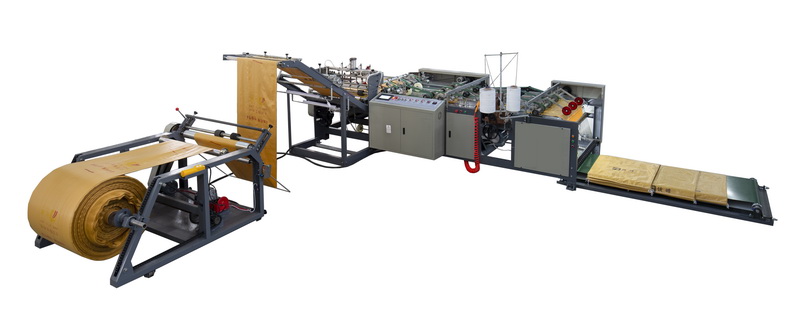

PP Woven Bag Auto. Cutting and Sewing Machine
QTF-750
QF-750
Application:
To automatically cut and stitch PP/HDPE woven tubular fabric roll into the bag.
PE film liner bag online supplying and assembling unit is optional.
Advantages:
● High efficiency
● Low maintenance cost
● Operator friendly
● Best economic benefit
Composition of the Machine
|
Standard items
01) Unwinding unit |
Optional items
01) Punching device |
Technical Data
| Model | QF-750 | QTF-750 |
| Width of woven fabric | 400 - 750mm | 450 - 680mm |
| Cutting length | 600 - 1200mm | 600 - 1200mm |
| Thickness of PE liner film | - | ≥0.01mm |
| Width of PE liner film | - | Width of WPP fabric + 20mm |
| Cutting accuracy | ±2mm | ±2mm |
| Hemming width of bottom (single hemming) | 20 - 30mm | 20 - 30mm |
| Stitch style | Double thread, chain | Double thread, chain |
| Length of stitch | 5 - 14mm | 5 - 14mm |
| Production speed * | 20 - 40pcs/min | 20 - 35pcs/min |
| Max. dia. of unwinding | 1200mm | 1200mm |
| Power supply | 380V / 3P / 50Hz / A.C. | 380V / 3P / 50Hz / A.C. |
| Installed power | 6.0kw | 9.0kw |
| Overall dimension (L×W×H) | 6000×6000×1500mm | 7000×6000×1500mm |
Remark:
* The data depends on processing specification and the physical property of material.
** Specification and dimensions are subject to change without prior notice.
*** Special specification and versions on request.
